⚡ Key Features
Generator-Compatible Backup – Keeps essential circuits powered during grid outages.
Dual Backup Ports – Intelligent load management for critical and non-critical appliances.
High Surge Capability – Handles 200 % overload for up to 10 seconds.
Ultra-Fast Switchover – Automatic transfer to backup in under 4 ms for seamless power.
Microgrid-Ready – Multiple inverters can work together to create an independent power network.
Smart Energy Management – High-efficiency charging/discharging and flexible time-of-use settings reduce electricity costs.
Robust & Weatherproof – IP66 protection and intelligent fan cooling ensure reliable operation in harsh environments.
This inverter is perfect for homes, farms, and small businesses seeking reliable renewable power with advanced energy management.
Technical Specifications

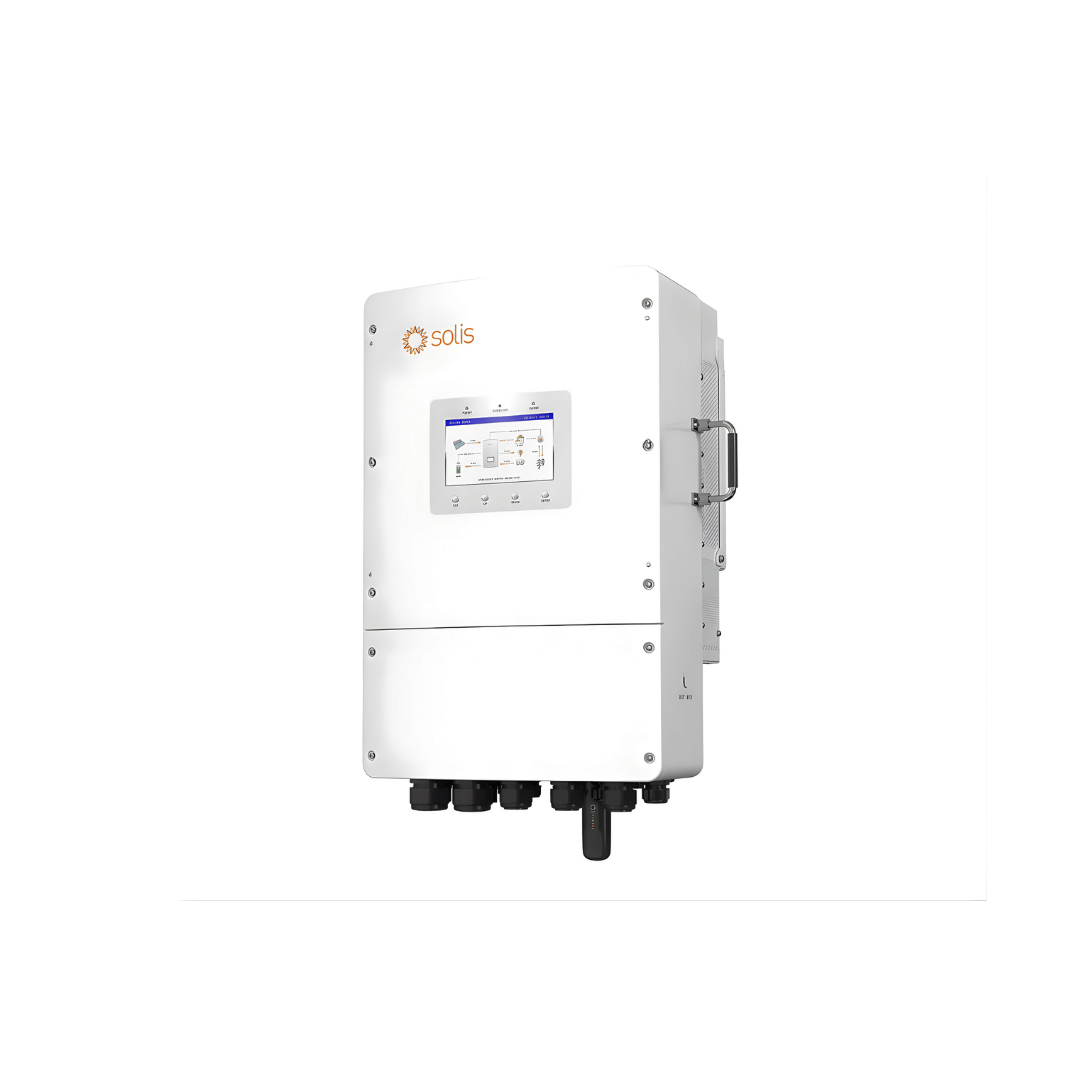

Model: S6-EH1P8K-L-PLUS
Rated Output Power: 8 kW
Recommended Max. PV Array Size: 16 kW
Max. Usable PV Input Power: 12.8 kW
Max. PV Input Voltage: 500 V
MPPT Voltage Range: 90 – 435 V
Max. PV Input Current: 32 A / 32 A
Battery Voltage Range: 40 – 60 V
Max. Charge / Discharge Power: 8 kW
Max. Charge / Discharge Current: 190 A
Rated Grid Voltage: 220 V / 230 V
Rated Grid Frequency: 50 Hz / 60 Hz
Rated / Max. Output Current: 36.4 A / 34.8 A
Surge Capacity: 200 % of rated power for 10 s
Backup Switch Time: < 4 ms
Max. AC Passthrough Current: 50 A
Efficiency (Max / EU): 96.2 % / 96.1 %
Battery Charge Efficiency (PV / AC): 95.3 % / 93.9 %
Battery Discharge to AC Efficiency: 93.8 %
Ingress Protection: IP66
Operating Temperature Range: –40 °C to +60 °C
Dimensions (W × H × D): 335 × 560 × 253 mm
Weight: 23.5 kg
Certifications: NRS 097-2-1, IEC 62116, IEC 61727, IEC 62109-1/-2, EN 61000-6-2/-3
